Product Details
- Intel H61/H67 Chipset
- Supports dual-channel DDR3 1066/1333/1600 MHz memory
- AMI BIOS
- Micro-ATX
- Memory up to 16GB
- M.2 slot
- 1 x PCI Express 3.0 x16 size slot
Product Type: Motherboards
DDR3 Memory Support: The ZEB-H61 NMVe motherboard is compatible with DDR3 memory modules, offering impressive speeds between 1066 MHz and 1600MHz for optimal system performance. H61 chipset: The ZEB-H61 NMVe comes with the H61 chipset, a robust combination that provides a solid foundation for stability and reliability that coordinates the motherboard's functions. Socket configuration: Designed with an LGA 1155 socket, this motherboard supports smooth data transfer and increased processing power by supporting the latest generation of Intel processors. Motherboard: Equipped with LAN support, the motherboard ensures fast and reliable internet connectivity with 10/100 Mbps speeds. Additionally, including an M.2 slot improves data transfer speeds and optimizes storage space utilization. Storage: The motherboard provides 4 SATA II ports, allowing for connecting multiple storage devices such as hard drives and SSDs.

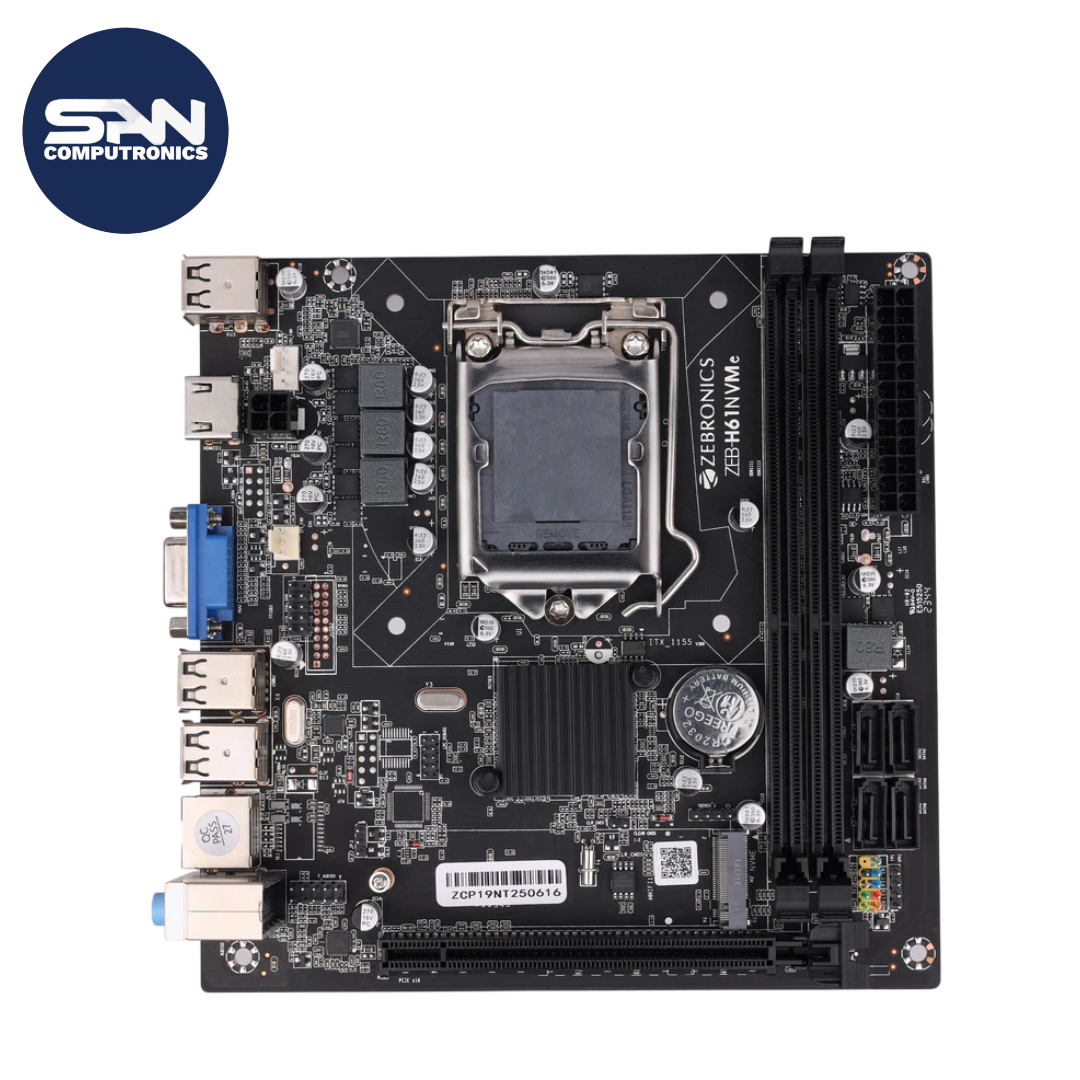

ZEBRONICS H61-NVMe Micro-ATX Motherboard for LGA 1155 Socket, Supports Intel 2nd
| Supported CPU | Socket 1155 Intel Pentium/Celeron Series Processors/ i7 / i5 / i3 series CPU |
| Chipset | Intel H61/H67 Chipset |
| Memory Supported | 2nos DDR3 Dual channel RAM slotsMemory up to 16GBSupports dual channel DDR3 1066/1333/1600MHz memory |
| BIOS | AMI BIOS |
| I/O Interface | 1 x HD port, 1 x VGA Port, 6 x USB 2.0 Port,1 x RJ45 Port, 1 x 3-in-1 Audio |
| Onboard Interface | 1 x 24 pin ATX Power Connector,1 x 4 Pin ATX 12V Power Connector,1 x Front Audio Connector,1 x Front Panel Connector,1 x Speaker Connector,2 x Fan Connectors, 4 x SATA II Ports, 1 x USB 2.0 Header, 1 x 2pin CMOS Header,1 x Debug Card Header, 1 x M.2 Slot |
| Integrated Sound | Stereo Audio |
| Integrated LAN | Supports Realtek 8106E 10/100 Mbps |
| Expansion Slot | 1 x PCI Express 3.0 x16 size slot |
| Form Factor | Micro-ATX |
| Country of Origin | People’s Republic of China |
